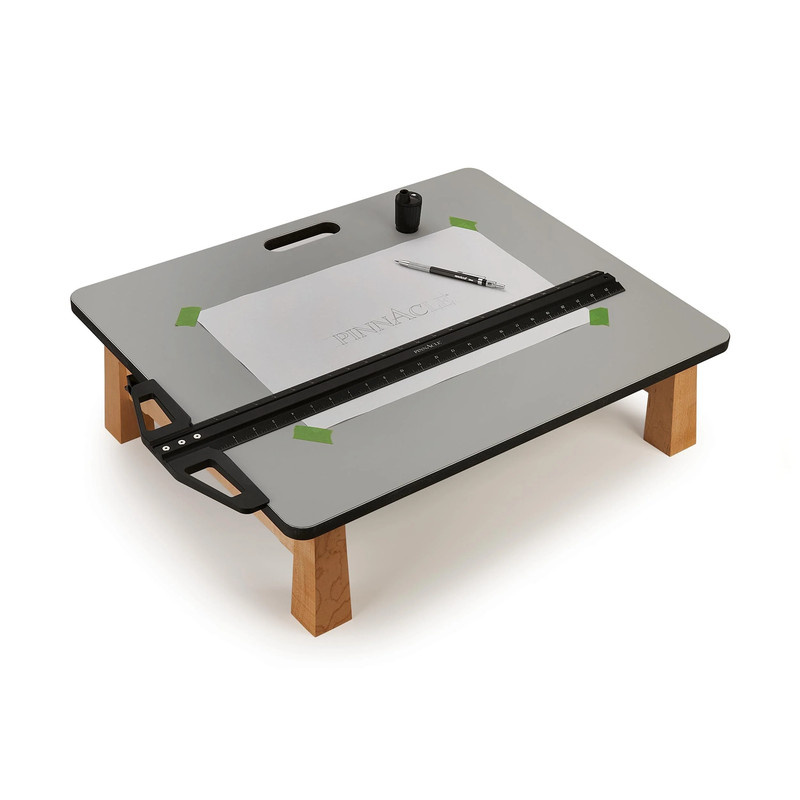

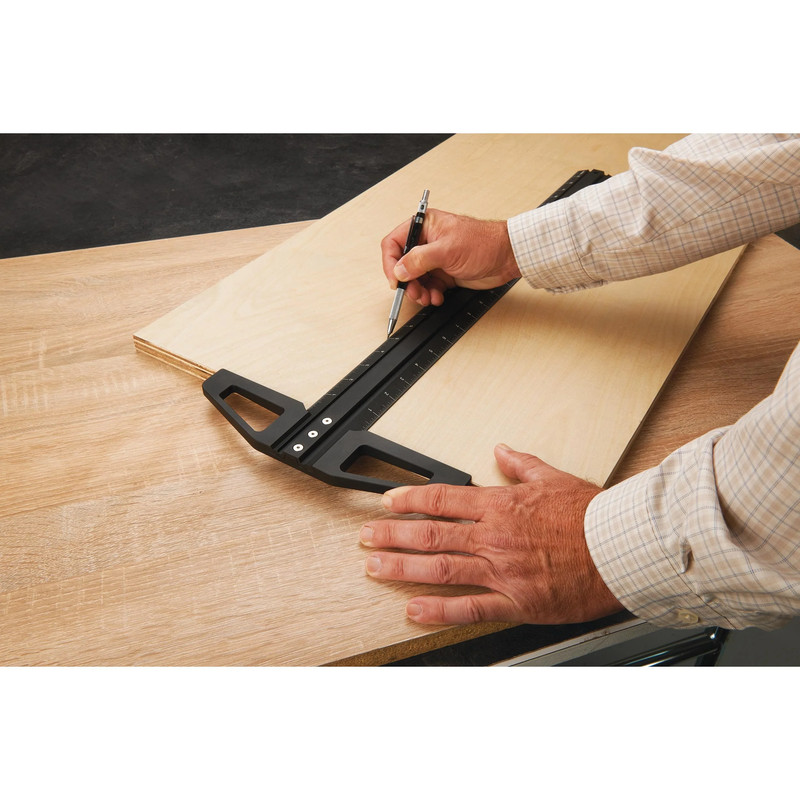

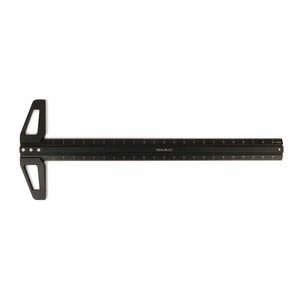

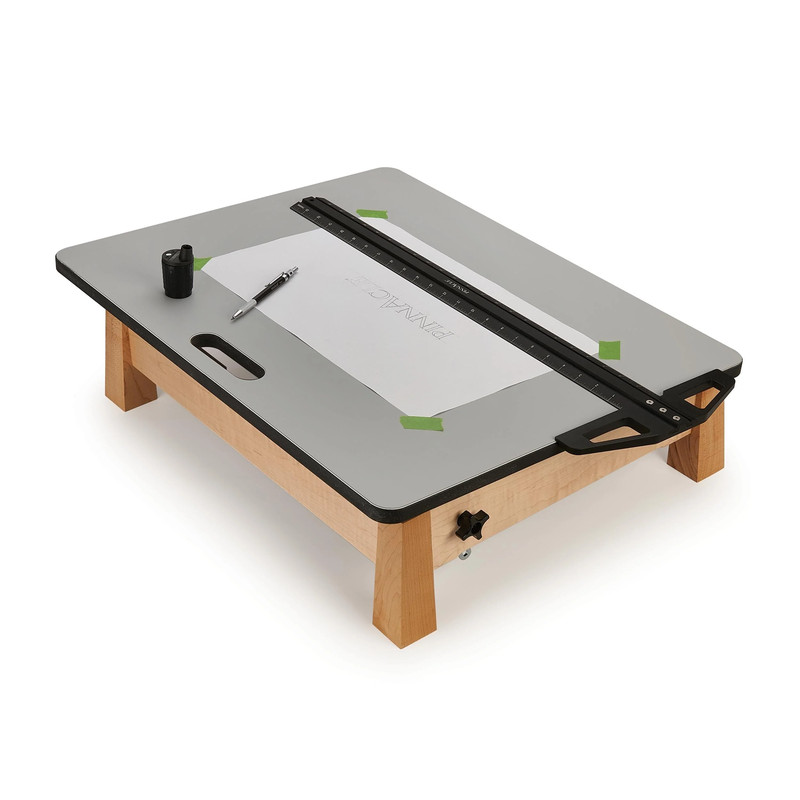

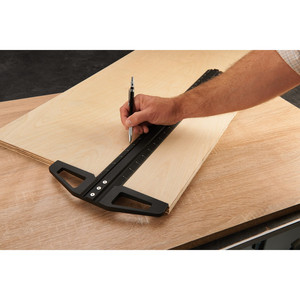

The Pinnacle® Precision T-Square is made from an extruded aluminum profile, which features continuous grooves for handling and flatness, along with machined edges for straightness. Rules are black anodized for wear protection, with white laser engraving for visual contrast. Each edge of the profile is engraved with 1/32″ increments for both left-hand and right-hand use. The CNC machined beam features flanges to stabilize the square on top of the drawing surface.

Features:

• CNC machined beam with stabilizing flanges
• Grooved for handling and flatness
• For both left-hand and right hand use
• Extruded aluminum profile with machined edges
• Black anodized for wear protection
• White laser engraved imperial markings at 1/32″ increments

Specifications:

• Length: 24″
• Material: Aluminum
• Finish: Black anodized
• Unit of Measurement: Imperial
• Graduations: 1/32″

What’s Included:

• (1) Pinnacle® 24″ Precision T-Square
