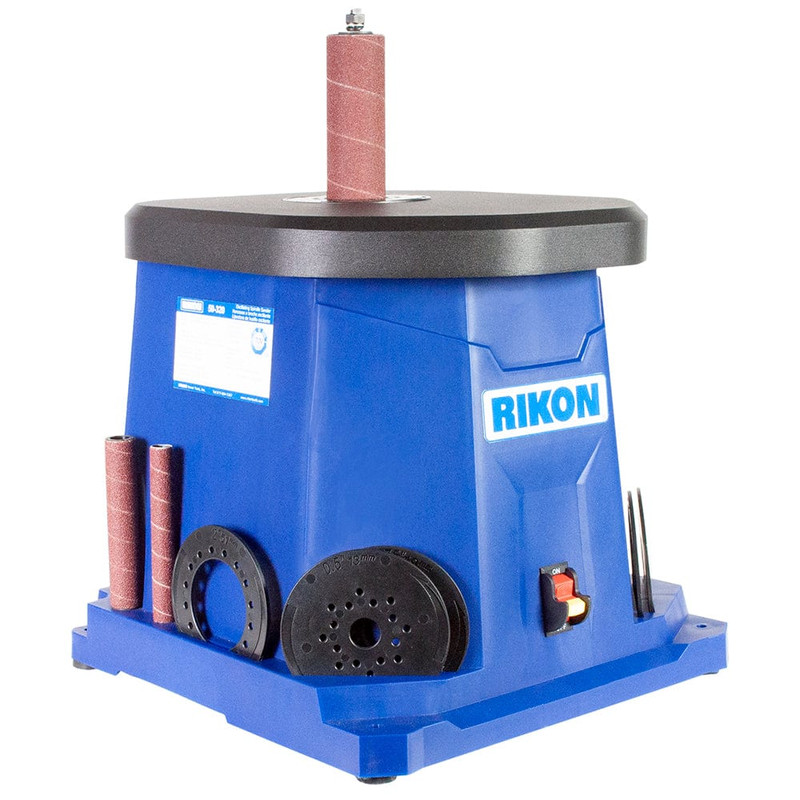

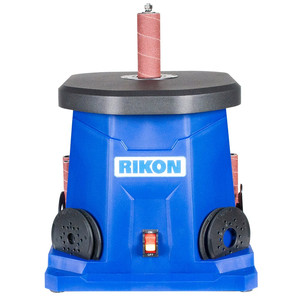

Oscillating Spindle Sander 50-320 is a specialized sander for the fast and accurate sanding of curved board edges and the inside surfaces of bored holes in projects. 4-1/2″ Tall abrasive sleeves mounted on the machine’s spindle oscillate up-and-down 5/8″, 58 time per minute. This oscillation while the spindle spins, provides more efficient abrasive cutting action. Metal table is fixed, non-tilting, so the motor driven spindle is always 90 degrees to the table. Powerful 1/2 HP, 120 Volt, 4 Amp, 10,000 RPM motor drives the spindle at 2,000RPMs. Sander includes 6 spindle diameters (1/2″ – 3″), 6 abrasive sleeves and 6 table inserts to make this a valuable machine for every shop. Weighs 20 lbs.

• 1/2 HP motor provides great power for sanding. Motor is 120V, 4 amp and operates at 10,000 RPMs with reduction gearing to operate the sanding spindle at 2,000 RPMs for best sanding action.
• Metal table measures 12″ x 12-5/8″ and is fixed, non-tilting, so the spindle is always at 90 degress to the table for reliable edge sanding of board edges.
• Includes 6 spindle diameters – 1/2″, 3/4″, 1″, 1-1/2″, 2″ and 3″ for abrasive sleeves. Each sleeve is 4-1/2″ long.
• Spindles oscillate up-and-down 5/8″, 58 times per minute for efficient abrasive cutting action.

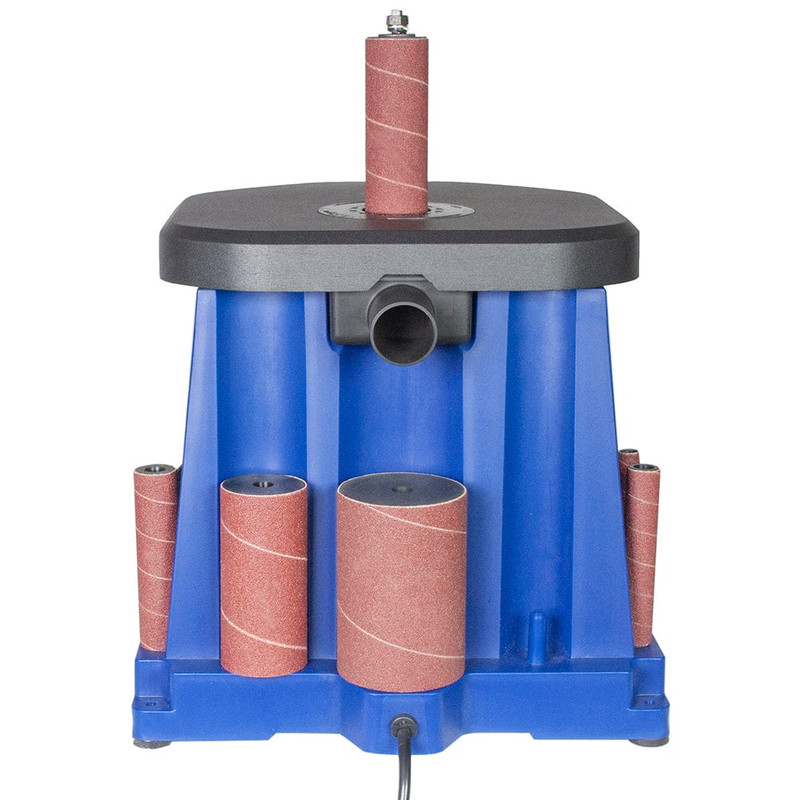

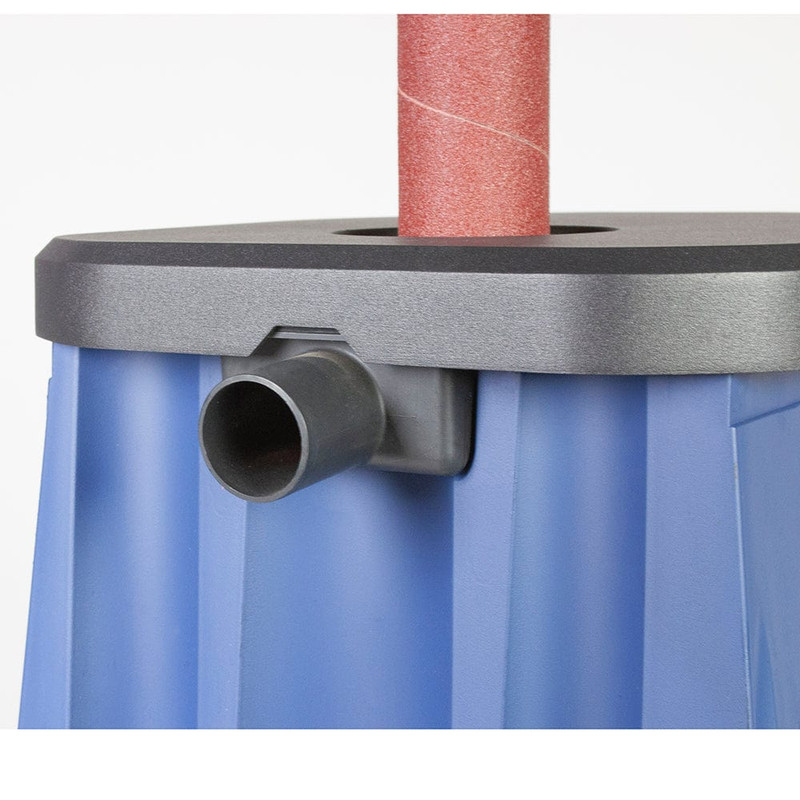

• Includes a standard 38mm (1-5/16″ I.D. or 1-1/ 2″ O.D.) dust port for use with dust collectors.
• On/Off switch has removable safety tab for extra security against unauthorized use.

• Motor Horsepower: 1/2 HP
• Motor Amps: 4 A
• Motor Volts: 110V, 60 Hz
• Speed: 2,000 RPM
• Table Size: 12-5/8” x 12”
• Spindle Length: 4-1/2”
• Spindle Diameters: 1/2”, 3/4”, 1”, 1-1/2”, 2”, 3″
• Dust Outlet: 1-1/2” O.D or 1-5/16” ID
• Height (overall): 23-1/2″
• Width: 13-3/8”
• Depth: 14”
• Base Size (LxW): 12-3/8” x 14”
• Net Weight: 20 lbs.
• Warranty: 5 Years

• Multiple Inserts
• Multiple Spindles
• 5 Year Warranty
