25″ Dual-Drum Sander 5 HP 1 Ph 230V – DDS225

25″ Dual-Drum Sander 5 HP 1 Ph 230V – DDS225

$1,619.99

SKU: 82389613796 Categories: , , , , , ,

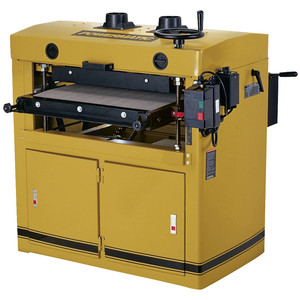

For a production class Dual Drum Sander, model DDS225 from Powermatic, is loaded with features. This machine features a 5HP motor to power the twin poly V-belts. The dual steel drums have a hard durometer rubber coating to assure a flat, mar free finish. Independently adjustable rear drum makes fine tuning easy. A heavy cast iron table incorporates four solid jackscrews with chain drive timing to keep it level at all times. The heavy-duty poly conveyor belt provides a positive grip on the stock. The 1/4HP feed motor is coupled to a two-speed forward/reverse gearbox that will sand 8 and 12 surface feet per minute. The heavy steel cabinet provides years of vibration free sanding, with plenty of storage space underneath.

Features

  • Independently adjustable rear drum for fine tuning
  • Hard durometer rubber coating on steel drums for flat, smooth finish
  • Full size cast iron table
  • Forward and reverese poly conveyor belt grips stock evenly
  • Dual dust ports with directional baffles for more efficient dust control
  • 4″dust ports
  • Hood locking handle
  • Conveyor tension adjustment
  • Depth limit plate
  • Storage compartment

Specifications

  • Motor: 5HP, 1PH, 230V, 21 Amps
  • Style: Drum
  • Drums: 2 each
  • Drum Speed: 1700 RPM
  • Drum Diameter: 6″
  • Conveyor Motor: 1/4HP
  • Maximum Board Thickness: 5-1/4″
  • Maximum Board Width: 25″
  • Minimum Board Length: 9:
  • Minimum Board Thickness:1/32
  • Dust Collection Minimum CFM Required: 600 CFM
  • Dust Port Outside Diameter: 4″
  • Electrical Controls: 230V Magnetic

Includes

  • Open end wrenches: 12-14mm and 17-19mm
  • Hex wrenches: 2, 3, 4 and 5,,
  • Front Drum: 80 grit sandpaper installed
  • Rear Drum: 100 grit sandpaper installed
  • Phillips and flat head screwdrivers for final assembly, not included
