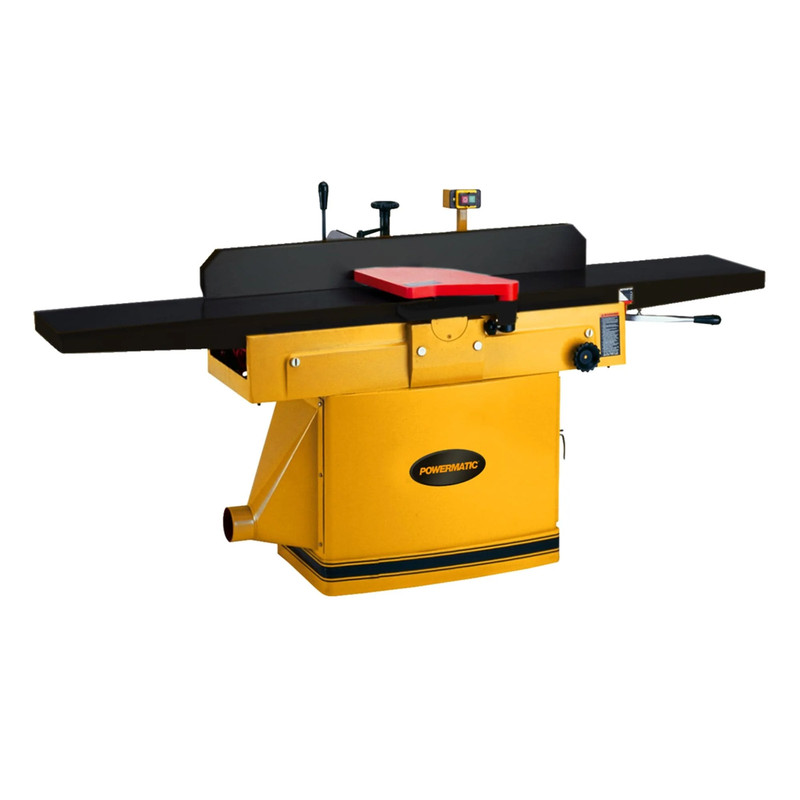

12″ Parallelogram Jointer with ArmorGlide – Straight Knife – 3 HP 1 PH 230V – 1285T
$2,159.99
12″ Jointer – 3 HP 1 PH 230V ArmorGlide, Model 1285T, now features ArmorGlide Technology that is low-friction and rust-resistant, the Powermatic 1285T 12″ jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. This model features a straight knife cutterhead.
Features:
- ArmorGlide Technology gives you a low-friction, industrial-grade coating
- Rust resistant
- Less maintenance
- More control
- Large 12″ x 84″ precision ground cast iron table surface for heavy-duty work

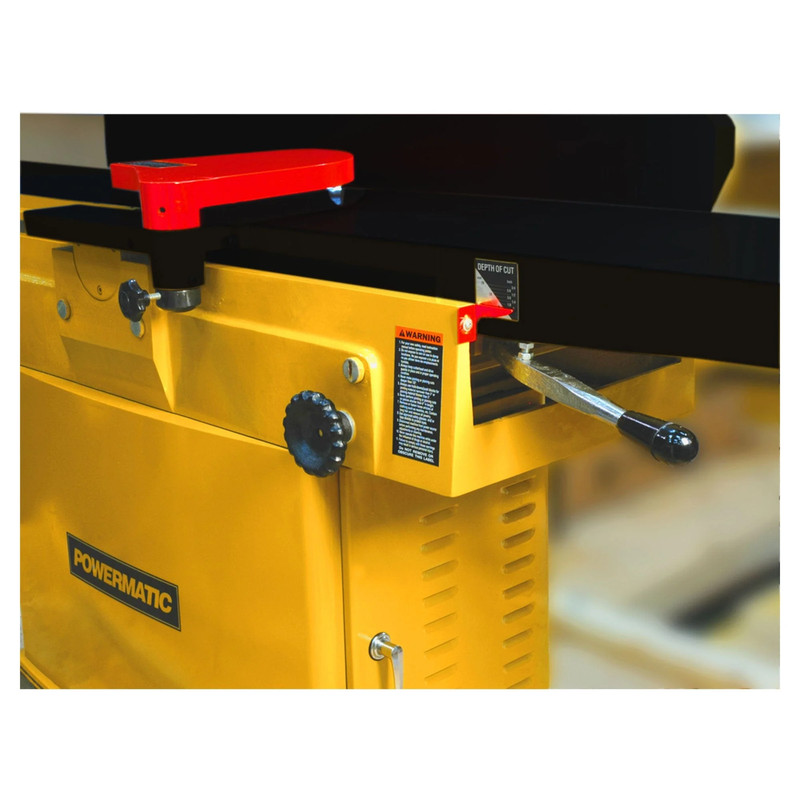

- Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments
- Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play
- Straight knife cutterhead with 3 high speed steel knives create a clean cut
- Table “lips” on both sides of cutterhead aid in noise reduction
Specifications:
- Product: 12″ Jointer
- Type: Straight Knife (3)
- Style: Floor Standing Model
- Motor Power: 3 HP
- Motor Phase: Single 1 PH
- Voltage: 230V
- Cycle: 60 Hz
- Cutterhead Speed: 5000
- cuts Per Minute: 15.000
- Cutting Capacity (W x D): 11-3/4″ x 3/4″
- Number of Knives: 3
- Dust Collection Minimum CFM: 800
- Dust Port: 4″
- Infeed Table Length: 47-1/2″
- Net Weight: 762
- Ship Weight: 880 lbs.
- Recommended Circuit Size: 30A
What’s Included:
- (1) Powermatic – 12″ Parallelogram Jointer with ArmorGlide – Straight Knife – 3 HP 1 PH 230V – 1285T
